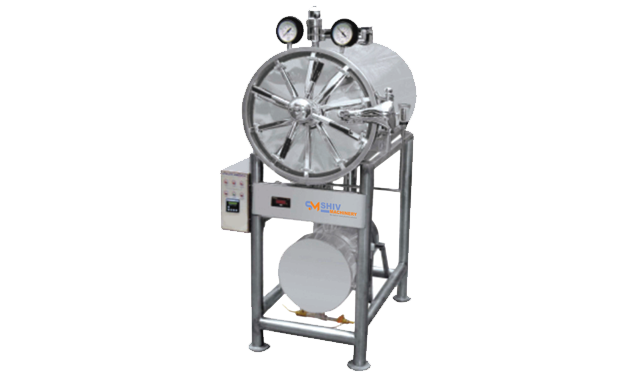

Horizontal High Pressure Cylindrical Steam Sterilizer

Handsomely Made For Long Service and to provide easier and surer Sterilization for use in Hospitals,Nursing Homes, Pharmaceutical Industries and Laboratories.

CONSTRUCTION : Both chambers, back plate, ring and steam generator are made of strong 304 G / 316 stainless steel. All joints are strongly argonwelded and completely leak proof. The outer jacket is thickly insulatedwhich prevent heat loss due to radiation and covered with stainless steelsheet for elegance. All sterilizers are hydraulically tested upto 2.5 times of working pressure. By mean of steam under pressure of 5 to 22 PSI ± 3 PSI (Adjustable). The unit is fitted with PID controller, timer alarm, Automatic pressure control switch, water level indicator, Temperature gauge, vacuum breaker and vacuum drying facility with Moisturizing trap. Mounted on tubular M.S. frame with ground levelling flanges.

SAFETY DOOR : Provided with a positive radial locking safety door with neoprene rubber/ silicon gasket which cannot be opened while the chamber is under pressure and disengages automatically when chamber is exhausted. This affords complete safety to the working personnel against explosive opening.

Note : Working sterilization °C/134°C Power Supply 440V, 3 Phase Power supply, Single phase, 220V AC on request

Note : Customized Solution Also Available On Request
