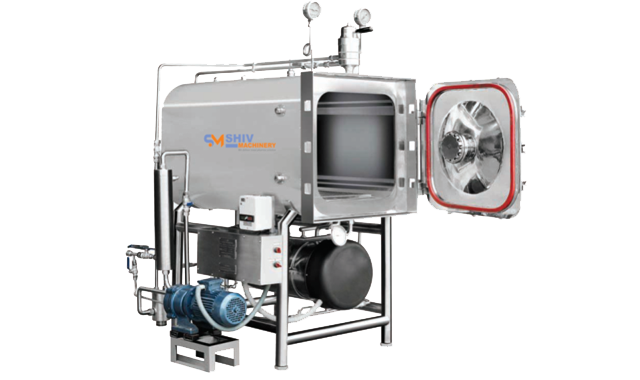

TRIPLE SAFETY : The sterilizer is provided with triple safety. (A) By a pressure control switch which automatically limits the pressure to the required set valve. (B) Two spring loaded safety valves one each at chamber and boiler level. (C) A dead weight safety valve at chamber level.A PLUG SCREEN prevents the discharge line fromchoking. The plug is easily removable for routing cleaning. A powerful Ejector (for drying sterilized linen) circulates air through the chamber. The circulating air passes through a corrosion resistant metal wool filter. A Dial thermometer is provided to show the chamber temperature. AUTOMATIC VACUUM BREAKER is provided to break vacuum case of vacuum forma condensation.
| Model | Inner Dimension | Capacity Ltr. | Heater Load | Sterilization Temp & Pressure | Operating Pressure |
|---|---|---|---|---|---|
| SMHR-180 | 18” x 18” x 36” | 180 | 12 kW | 1.2 Kg/cm2(15-18psi)at 121°C | From 10 psi to 20 psi |
| SMHR-240 | 18” x 24” x 36” | 240 | 12 kW | ||
| SMHR-320 | 24” x 24” x 36” | 320 | 15 kW | ||
| SMHR-430 | 24” x 24” x 48” | 430 | 18 kW | ||
| SMHR-540 | 24” x 24” x 60” | 540 | 22 kW | ||
| SMHR-650 | 24” x 24” x 72” | 650 | 36 kW | ||
| SMHR-1000 | 30” x 36” x 60” | 1000 | 45 kW |
Operating Temperature and Pressure Sterilizing Temp. : 121°C.Sterilizing Pressure : 1.2 to 1.5 kg/Cm2,(15 psi to 22 psi)
Note : Customized Solution Also Available On Request
