Industrial Type Ethylene Oxide Sterilizers

Industrial Type Ethylene Oxide Sterilizers

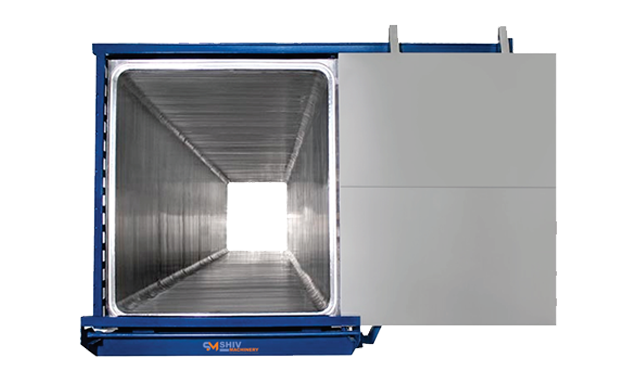

SHIV MACHINERY is Industrial Type of Ethylene Oxide Sterilizer is the fastest way to sterilize equipment which is heat-sensitive or susceptible to moisture. Sterilization can be performed for equipment in their original packaging and does not need extra packaging. Sterilizers using EtO cylinders which are available on the market and allows loading goods by pallets. A pair of an automatic sliding door provides easy loading,unloading, let to clean the chamber by forced air circulation after the post operation and pass through option for clean room operations. To eliminate pressure risk, security lock jaws have been installed on sterilizer's door. The inflatable silicone gasket eliminates risks of gas leakage which occurs by air pressure. System testing for gas leakage under vacuum conditions per each cycle provides full security. Devices are long-lasting thanks to its stainless steel structure. SMis Industrial Type of Ethylene Oxide Sterilizers can work under negative and positive pressures. Temperature, Time, Pressure, Humidity data recording, saving and printing online. The system comes with a large set of spare parts as free.



MODEL Inside Size(L x W x H) cm Outside Size(L x W x H) cm
SM-3 / 3 mm 150 x 135 x 170 300 x 295 x 240
SM-7 / 7 mm 300 x 135 x 170 345 x 295 x 240
SM-10 / 10 mm 450 x 135 x 170 495 x 295 x 240
SM-15 / 15 mm 675 x 135 x 170 720 x 295 x 240
SM-20 / 20 mm 900 x 135 x 170 945 x 295 x 240
SM-25 / 25 mm 1075 x 135 x 170 1120 x 295 x 240
SM-30 / 30 mm 1300 x 135 x 170 1345 x 295 x 240
SM-35 / 35 mm 1500 x 135 x 170 1545 x 295 x 240
SM-45 / 45 mm 1950 x 135 x 170 1995 x 295 x 240

Material Of Case Body: Stainless Steel, Aisi 304 Polished

Sterilizing Temperature: 0-100 °c

Sterilizing Pressure: -0,8 / +0,8 Bar

Pre-vacuum: -0,8 Bar

Sterilizing Humidity: 20-100%rh

Eo Concentration: 250-1200 Mg/l

Sterilizing Time: 0,5-12 Hours

Aeration Time: 0-99 Hours

Times Of Air Change: 0-99

Ethylene Oxide Waste Gas Treatment: Standard

Steam Generator: 28 Kw


Sterilization Chamber

Heating And Hot Water Circulation System

Vacuum System

Humidification System

Eo Gasifying System

Electrically Operated Double Automatic Sliding Door And Air-

Inflation Sealings, Pair

Residual Gas Treatment System

Control Panel Unit Include Alarm & safety System,

Recorder & printer


Note : Customized Solution Also Available On Request
