The feed container moving on conveyor belt are fed into star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head. Where the sealing head is performing perfect operation of threading & sealing.
Extremely hygienic processing.
Least manual handling.
Design compliance with cGMP
Capacity up to 5,000 Liter.
Product Contact AISI 316L
Atmospheric, Vacuum or Pressure Operation.
Jacket for heating & cooling.
Vessel Inside Pressure (-1 /+3 Bar)
Heating Jacket Pressure (-1 /+6 bar)
Heating by steam or hot water circulation.
Thermal Insulated.
Mechanicals or Electro polishing of internal surface.
Welded, flanged or hinged type cover
Integrated Cleaning in Place-CIP.
Sterilizing In Place-SIP as an Option.
Portable execution on request.
Validation protocols & Instrumentation celebration.
Agitator can be top or bottom driven or magnetically driven.
Propeller type, Anchor type provided with High speed disperser or rotor-stator homogenizer.
Single or double mechanical seal.
Sugar Charging / Transfer System.
Sugar Melting Vessel with mixing stirrer.
Basket Filter & Transfer Pump.
Syrup Manufacturing Vessel with stirrer.
Inline Homogenizer.
Zero Hold up Filter press.
Storage Tank with stirrer.
Interconnecting pipeline.
Transfer Pumps.
Integrated automatic control panel.
Working Platform.
For production, filtration, transfer and storage solution.
Pre reparation vessels.
Inline homogenizer.
Inter Connecting Pipe
Solid or sugar Charging System
Working Platform.

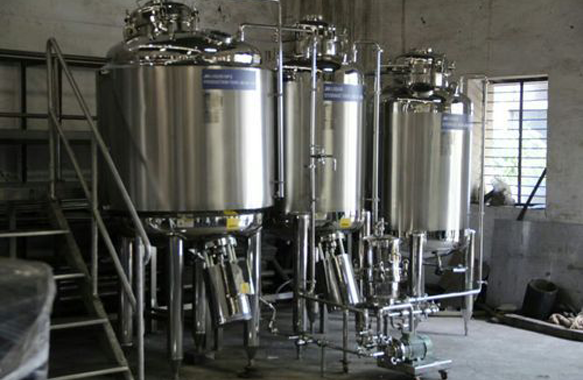

The liquid oral manufacturing plant is designed to be operated by one operator and one helper, saving on precious man-power costs.
Sugar syrup and manufacturing vessels are provided with limpet coils for heating and cooling, designed for internal vacuum to facilitate transfer of sugar directly from stores to sugar syrup vessel.
Sugar syrup is transferred to manufacturing vessel through online sugar syrup prefilter by vacuum.
Entry of all propeller agitators are from bottom through a specially designed cartridge mechanical seal with TC/TC seal face.
The advantage of the bottom propeller agitator over the conventional agitator is that there are no vibrations of shaft, no couplings in the drive assembly, leading to lower maintenance cost for liquid oral manufacturing plant.
Pipes, pipe fittings and valves are of SS 316, seamless, internally electropolished with DIN standard unions and silicon Gaskets.
Manhole of all the vessels are equipped with davit fitting and the cover of the manhole slides instead of being lifted.
Controls of all function by PLC Controls with HMI Touch screen.
Level controls by means of capacitance probe or electronic load cells.
Digital indication and controls of all process parameters for Process time, agitator speed, temperature, pressure & level.
500 Ltrs
1000 Ltrs
1500 Ltrs
2000 Ltrs
3000 Ltrs
5000 Ltrs
