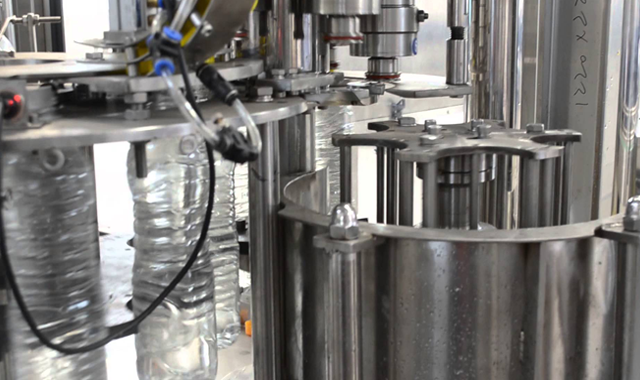

We manufacture Automatic Rinsing Filling Capping Machine, Semi- Automatic filling machine, Air Conveyor, Discharge Conveyor, Auto Sleeve Labeling Machine , Automatic BOPP Labeling, Automatic Web Sealer, etc. RFC Machine Series is based on fully automatic process like Bottle Rinsing, Filling, Capping Machine etc. This machine equipped with man-machine technology with all automation. Mainly used for washing, filling and capping, etc.
Rotary neck holding.
Air Blow Conveyor on the in feed.
Slat Belt Conveyor on the out feed with Inspection Table.
No Bottle - No Rinse - No Fill - No Cap.
Unique Pick & Place type Capping with adjustable torque mechanism.
Speed Control by AC Drive.
Cap Elevator for feeding cap to the chute with automatic operation.
Cap elevator for feeding cap to the chute with automatic operation.
Stainless Steel enclosure provided for complete hygienic bottling.
Easy open nozzles for easy cleaning.
Can be linked directly to Automatic Blow Molding Machine for online Blow- Rinse-Fill-Seal.
Compatible with Online Shrink Tunnel, Labeling Machine or Ink Jet Printer.
| MODEL | KRFC-30 | KRFC-60 | KRFC-90 | KRFC-150 | KRFC-200 | KRFC-300 |
|---|---|---|---|---|---|---|
| No. of Heads | 10-5-1 | 12-16-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 |
| Capacity @ 1000 ml. | 1800 BPH | 3600 BPH | 4100 BPH | 5400 BPH | 7200 BPH | 9000 BPH |
| Rinsing Water Consumption @ 0.2 ~ 0.25 Mpa |
200 Ltr / hr | 800 Ltr / hr | 1600 Ltr / hr | 2500 Ltr / hr | 3500 Ltr / hr | 4000 Ltr / hr |
| Compressed Air Consumption @ 6 to 8 Bar |
0.25 m3 / min | 0.25 m3 / min | 0.3 m3 / min | 0.4 m3 / min | 0.5 m3 / min | 0.55 m3 / min |
| Electic Power | 3.00 KW | 4.23 KW | 5.03 KW | 6.57 KW | 8.63 KW | 9.63 KW |
| Bottle size range | 200 to 2000 ml | |||||
